測量特種光纖比如八角型光纖和雙包層光纖等
暗場照明法給出了光纖端麵的清晰圖像
符合標準 – 非常自信其準確性
短時間內高可重複性幾何測量
可溯源校準
廣泛適用各種光纖夾持器包括 Arden，Fujikura，FITEL，Sumitomo 等
內置LED滿足光芯測試的統一注入條件

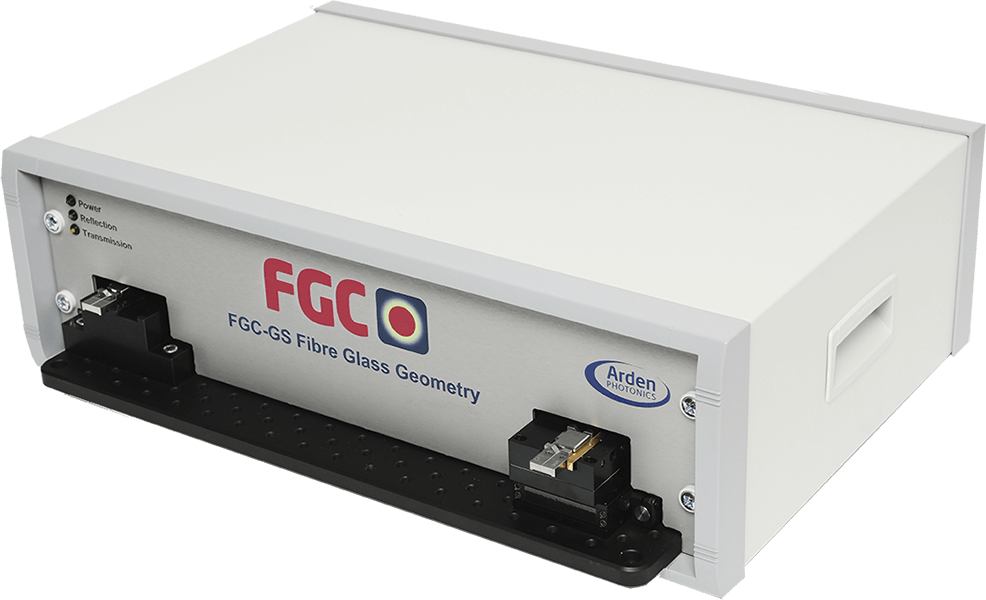

Optical | FGC-GS |
Max Field of View | 1200 µm |
Fiber Illumination – Reflection* | Darkfield illumination, 850nm LED |
Fiber Illumination – Transmission* | Multiple LED array, 850nm |
Optical | FGC-GS |
Max Field of View | 1200 µm |
Fiber Illumination – Reflection* | Darkfield illumination, 850nm LED |
Fiber Illumination – Transmission* | Multiple LED array, 850nm |
Measurement Capability |
|
Measurement Time | < 10 seconds (excluding fiber prep) |
Fiber Diameter | up to 1000µm |
Special Fibers | Dual clad, Octagonal, PM, Multicore, PCF, etc. |
Physical |
|
Weight | 11kg (with carry case 33kg ) |
Size | 0.5 x 0.5 x 0.2 |
Operating Temp | 10 – 30° C |
Computer Requirements | All FGC systems are supplied with a computer running up-to-date Windows operating system. |
Data Interface | 1 X USB 3.0 (USB B to USB A: 1m cable supplied) |
*May be fitted with other customized wavelengths.
**Repeatability is measured on the FGC-GS using a single 20/400 µm fiber without removing it from the unit at 22°C.
